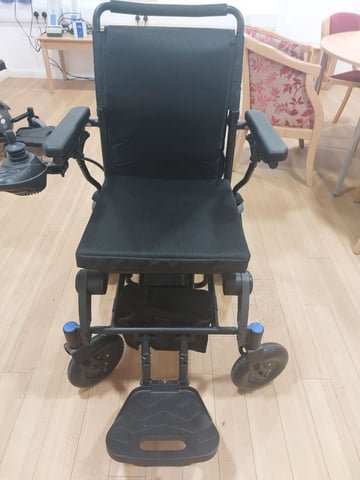

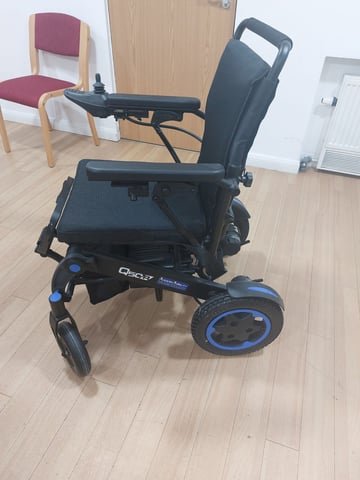

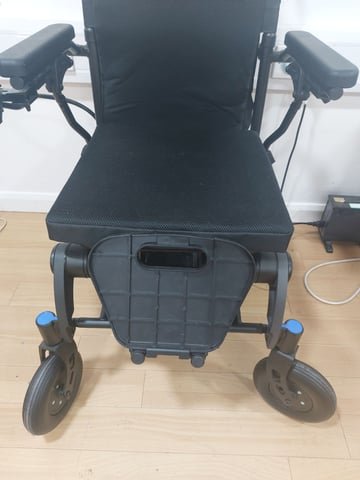

The Quickie Q50 R Carbon folding power wheelchair is known for its lightweight design, featuring a carbon fiber frame. It boasts a maximum speed of 6 km/h (3.7 mph) and a range of up to 12 km with one battery, which can be doubled to 24 km with an optional second battery. The wheelchair is relatively compact, with a folded length of 370mm, width of 570mm, and height of 767mm.
Here’s a more detailed breakdown of the specifications:
Dimensions & Weight:
- Total Length: 92.3cm
- Overall Width: 57cm
- Seat Width: 43cm
- Seat Depth: 45cm
- Backrest Height: 45 or 55cm
- Seat Height: 50cm (without cushion)
- Weight (without battery): 14.5kg
- Weight (with battery): 37.5kg

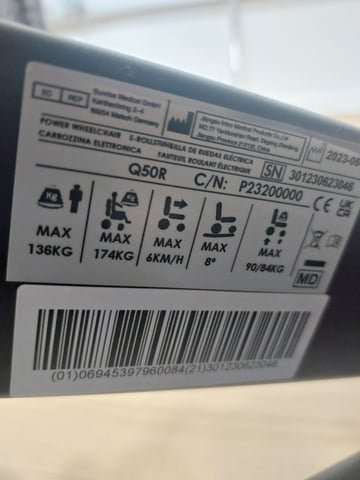

- Maximum User Weight: 136kg
- Folded Length: 370mm, width 570mm, height 767mm
Performance:
- Maximum Speed: 6 km/h (3.7 mph)
- Drive Range: 12km (one battery), 24km (with optional second battery)
- Maximum Kerb Climb: 4cm
- Turning Radius: 800mm
Other Features:
- Frame: Foldable carbon fiber
- Battery: 24V, 10Ah Lithium-Ion

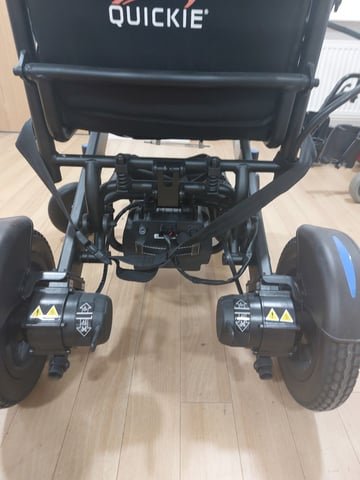

- Drive: Rear-wheel drive
- Casters: 16.5cm (6.5″)
- Wheels: 210mm drive wheels

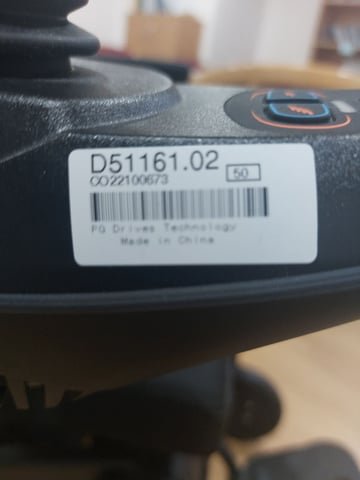

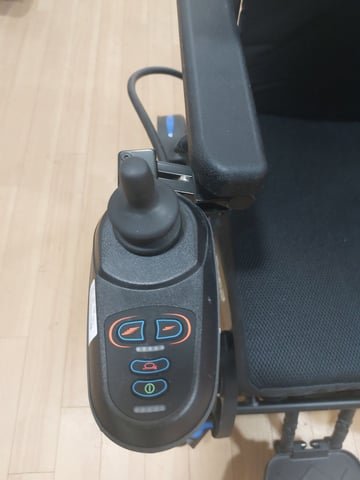

- Electronics: VSI (Curtiss & Wright)
- Airline Approved: IATA approved, suitable for air travel
- Shock Absorption: Unique shock-absorbing characteristics due to the carbon frame
- Brakes: Electromagnetic braking system
- Colors: Available in red, green, and blue
This information provides a comprehensive overview of the Quickie Q50 R Carbon wheelchair’s specifications, enabling informed decision-making for potential users.
