Product Description

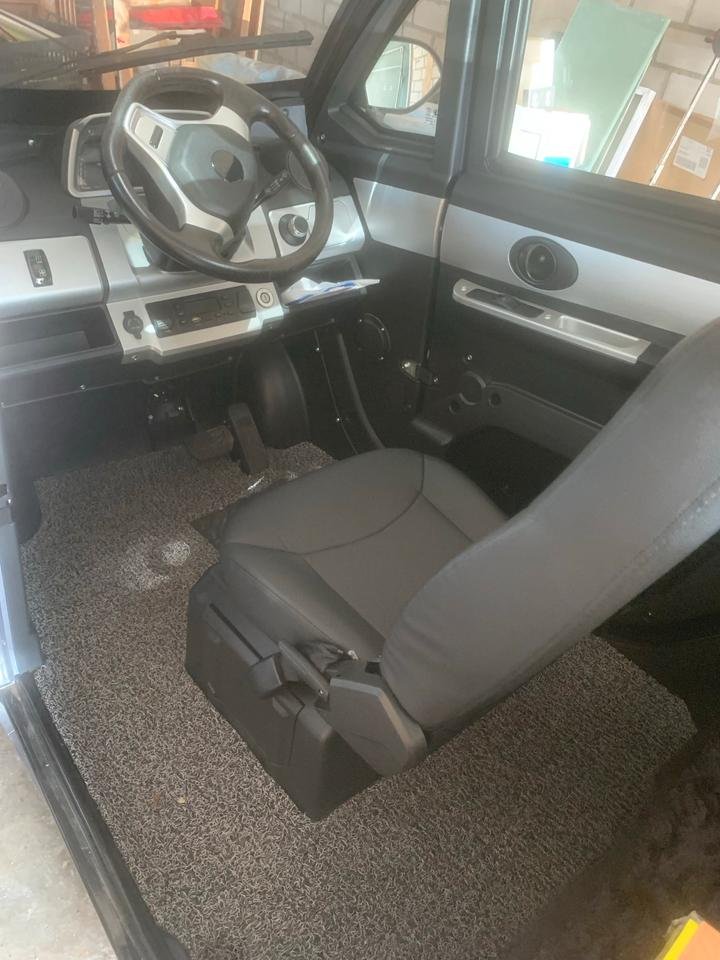

The Madat 05 is an electric cabin scooter with a top speed of either 45 km/h or 25 km/h and a range of up to 120 km. It offers space for two to four people, is exempt from road tax, does not require a technical inspection (TÜV), and can be driven from the age of 15 with a class AM driving license. The enclosed cabin protects against the weather, while the quiet electric motor makes it perfect for city traffic.
Vehicle Tax-free (currently tax-exempt until 2030)/in vehicle class L6e (exactly L6e-CP)!
General
Driving license: from AM (from 15 years old), B and other categories
Marking: Moped marking (small marking)
Insurance: apply with identification together, 50-100 euros per year
Tax: None
TÜV: None
Warranty: 2 years
Service/Repair: During the warranty period of 2 years, repair on site with our service vehicle. Or repair at your local partner workshop. 70 partner workshops across Germany.
Technical data
Motor power: 3,2kW
Peak Motorleistung: 6kW
Battery (V/ah): 72V 100ah
Range: 120 km
Braking system: front/rear disc brake
Lithium battery type: lithium
Number of seats (person): 2/4
Maximum speed (km/h): 45
Weight: 423 kg Without battery
Weight: 473 kg With battery
Dimensions in mm
Length/width/height (mm): 2608/1398/1636
Track (mm) front/rear: 1205/1230
Scope of delivery
E cabin scooter
COC paper
Charger
Remote control door lock
Maintenance/Inspection
Check battery connections
Brakes
Brake fluid
Check lighting
Gear oil
Tire inspection
Item Specifics
- Range120 km
- Speed45 km/h
- Battery100ah
- INSPECTION / MAINTENANCE
- Battery Care and Maintenance
- Observe Charging Cycles: Avoid completely discharging the battery repeatedly. Ideally, charge it when the charge level is between 20% and 80% to maximize its lifespan.
- Pay Attention to Temperature: Avoid extreme temperatures. Do not charge the battery at very high or low temperatures, as this can negatively affect its lifespan.
- Regular Charging Cycles: Even if the vehicle is not in use, the battery should be charged regularly to prevent deep discharges.
- Check Battery Capacity: Have the capacity and condition of the battery checked by a professional regularly, especially if the vehicle is used intensively.
- Inspect Charging Cable and Connections
- Regularly Inspect Charging Cable: Ensure the charging cable is intact and free from damage, as a defective cable can cause charging problems.
- Keep Connections Clean: Keep the charging connections clean and dry to prevent corrosion and poor connections.
- Check Tires and Brakes
- Tire Pressure and Tread: Since electric vehicles can be heavier, maintaining proper tire pressure is particularly important. Regularly check tire pressure and tread depth.
- Brake Maintenance: Electric vehicles often use regenerative brakes, which reduce wear on mechanical brakes. Nevertheless, brakes should still be inspected regularly.
- Check Electronic Systems
- Inspect Onboard Electronics: The electronic controls (e.g., for the drive, lights, and other functions) should be regularly checked for malfunctions. A dealer can read out the system and fix any errors.
- Perform Software Updates: Some electric cabin scooters have software that should be updated regularly to ensure the vehicle’s performance and safety.
- Battery Cooling System (if available)
- Some electric vehicles are equipped with a cooling system for the battery. For these models, regularly check the coolant level and the functionality of the cooling system.
- Maintain Body and Interior
- Clean Interior: Dust and dirt in the interior can affect ventilation and electronics.
- Corrosion Protection: For electric cabin scooters used year-round, applying corrosion protection to metal parts can be beneficial.
- Lights and Signaling
- Regularly check that the lighting (headlights, tail lights, turn signals) is functioning correctly. Electrical defects in the lights should be fixed immediately, as they can affect the vehicle’s safety.
- Wheel Bearings and Suspension
- Since electric cabin scooters often have different weight distributions compared to combustion models, the wheel suspension and bearings should be checked regularly to ensure safe operation.
